Wiring Loom Adapter - For Shock Mount Turn Signals :

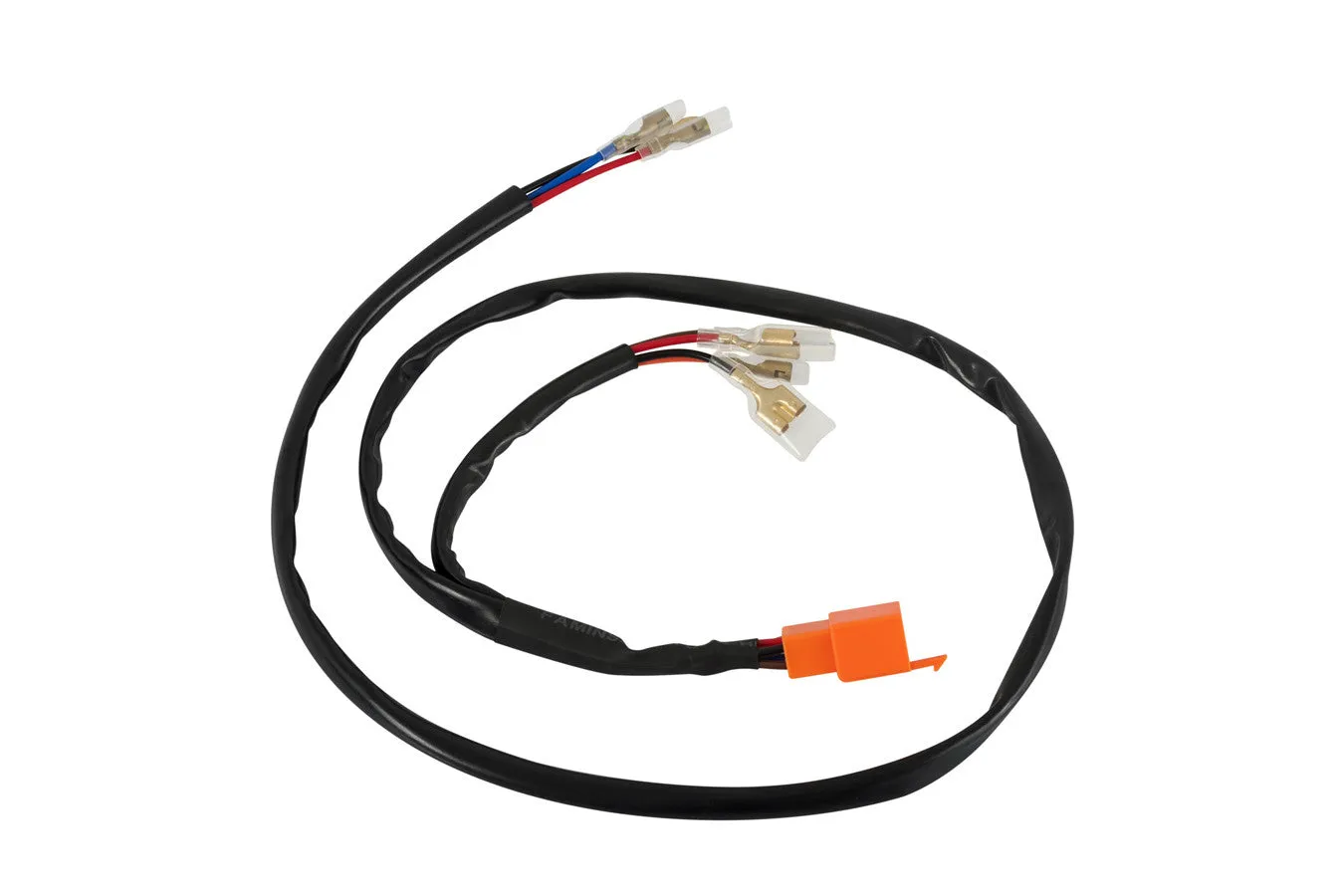

Plug And Play Extended Wiring loom adapter to save you having to splice the factory cables.

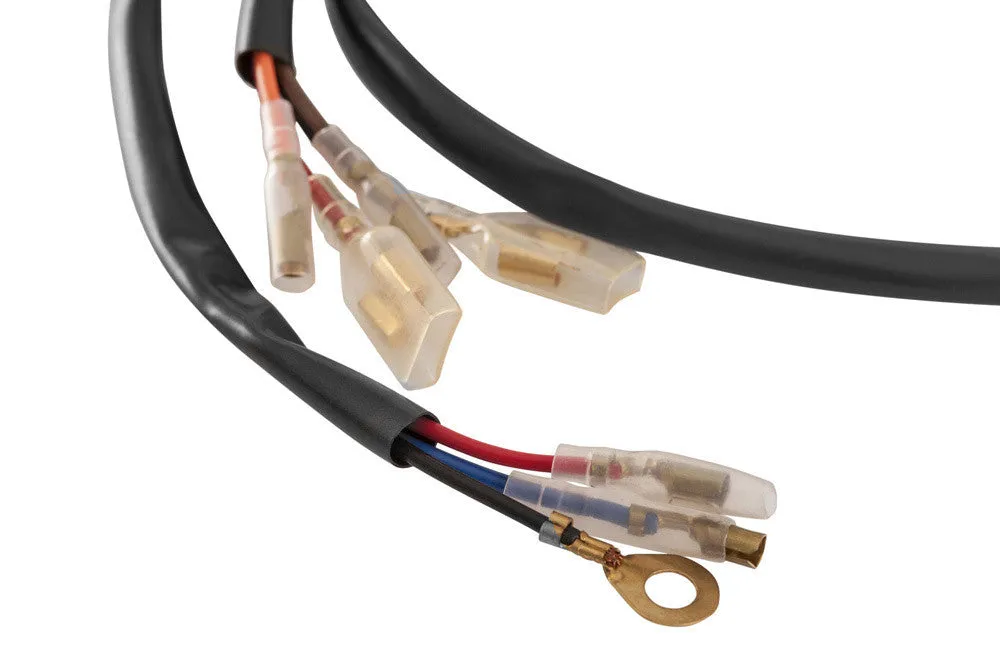

Plug and Play with bullet / spade connectors as pictured. Long enough for use for custom tail lights in stock position as well as further forward on tail tidy.
Designed for positioning turn signal indicators either at the shock mount or under-seat position.

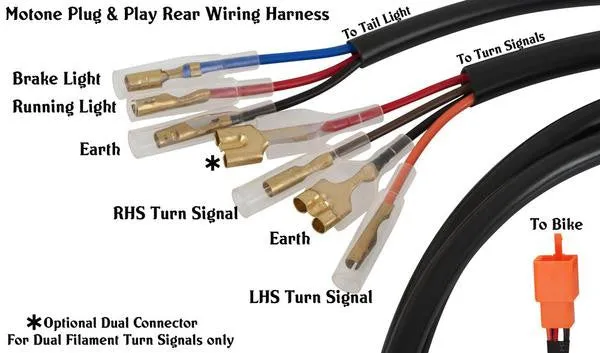

Wired as follows :
- Long Red is running light.
- Long Blue is brake light.
- Long Black earth.
- Orange is left indicator.
- Brown is right indicator.
Red wire double connector - this is for turn signals that are dual filament with 3 cables (so they can act as running lights as well as turn signals) - Many turn signals dont have this functionality hence this part is optional.
Wiring is as follows :
- long Red is running light
- long Blue is brake light
- long Black earth
- Orange is left indicator
- Brown is right indicator
- Red wire double connector - this is for turn signals that are dual filament with 3 cables (so they can act as running lights as well as turn signals) - Many turn signals dont have this functionality hence this part is optional.
Fits all Bonneville 2016 and before:-
- T100 (2001-2015)
- SE Alloy (2001-2015)
- Thruxton (2001-2015 )
